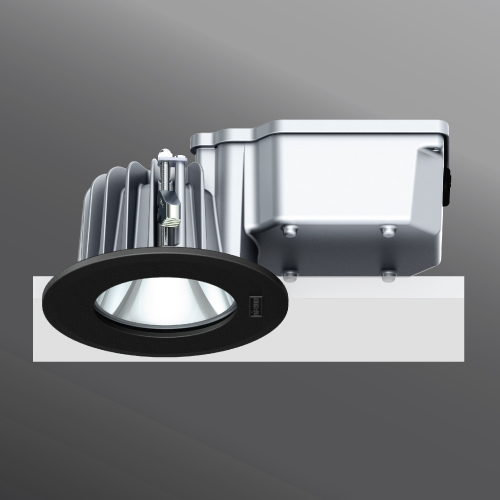

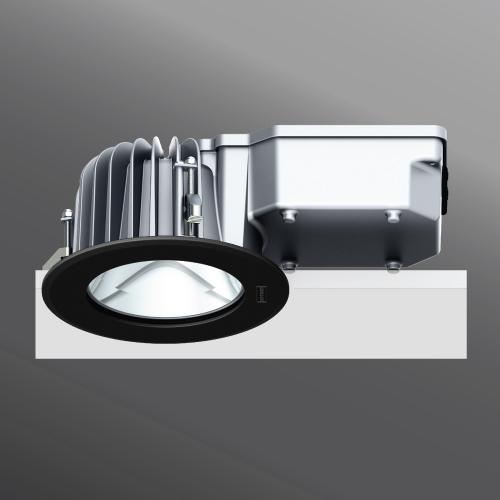

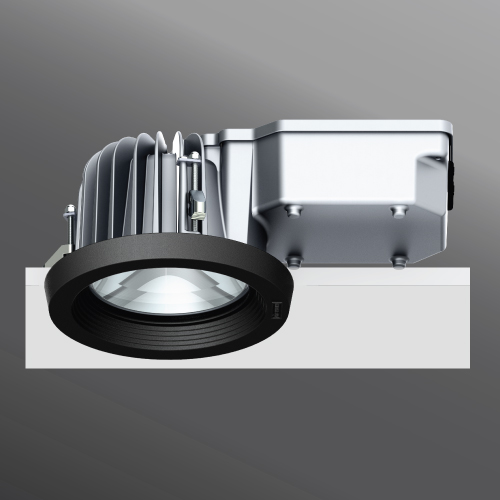

Mondova

Model#: UMO-800XX      Ratings:   IP65   F   CE   IK07   ETL

Mondova small and medium exterior waterproof downlight range makes this luminaire a unique and attractive option for most outdoor design applications. This innovative 4" deep low profile die-cast aluminum luminaire is designed with integrated heat sink, as well as waterproof die-cast driver housing. This unit is suitable for all wet location environments, as well as applications where the fixture is exposed to water, not only from below, but also from above, e.g open canopies. The product is available with two powder coated die-cast aluminum trim styles, namely baffled and flat trim. The trim is removed using a boyonet style twist lock action, meaning that screws are not required to hold the frame into place. The baffled trim protrudes .78" and the flat trim sits flush with the ceiling. This luminaire is suited for interior and exterior lighting. Available in symmetrical narrow, medium, wide and very wide light distribution. Color temperature 2700K, 3000K and 4000K. A rough in ceiling tray can be provided as an option for ceilings taht are not strong enough to support the weight of the fixture.

Jump down to Spec Sheets

Spec Sheets and Downloads for Mondova

Mondova 1 Baffled Frame 7.4" Dia

Model No. Watts  Lumens Kelvin Beam Dimmable 1-10V
UMO-80001 41 3225 lm 27K,30K,35K,40K 13°-20°-40°-70°

Mondova 2 Flat Frame 7.4" Dia

Model No. Watts  Lumens Kelvin Beam Dimmable 1-10V
UMO-80002 41 3225 lm 27K,30K,35K,40K 13°-20°-40°-70°

Mondova 3 Baffled Frame 6" Dia

Model No. Watts  Lumens Kelvin Beam Dimmable 1-10V
UMO-80011 21 1988 lm 27K,30K,35K,40K 20°-28°-39°-54°

Mondova 4 Flat Frame 6" Dia

Model No. Watts  Lumens Kelvin Beam Dimmable 1-10V
UMO-80012 21 1988 lm 27K,30K,35K,40K 20°-28°-39°-54°
