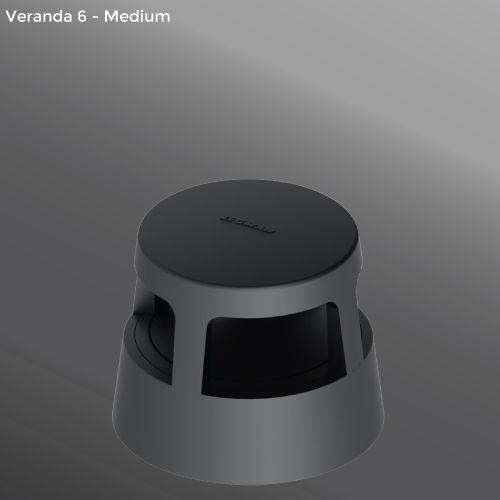

Veranda Pillar Light
Model#: UVR-702XX Ratings: IP67 CE IK08 ETL
- The optical technology of the Veranda pillar light guarantees a high degree of efficiency and optimal visual comfort while fulfilling the dark sky criteria.
- Developed to have excellent controlled downward light, elimininating any glare.
- Three light shields with different light distributions.
- Designed for lighting of entrances garden pathways and squares.
- This low level surface mounted luminiare is ideal for areas where inground product is not suitable, but horizontal lighting on the ground is required.
- Depending on the light distribution required, this fixture is available in 360°, 90°/90°, 90° and 180°.
- This vandal resistant luminaire can be installed using factory provided anchor bolts, as well as contractor provided wedge anchors.
Spec Sheets and Downloads for Veranda Pillar Light
Specification Sheets
|
Small Veranda Pillar Light LED
|
| Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
| UVR-70301 - 360˚ Light |
16/9
|
704/396 lm
|
27K,30K,35K,40K
|
•
|
| UVR-70302 - 180˚ Light |
16/9
|
350/196 lm
|
27K,30K,35K,40K
|
•
|
| UVR-70303 - 90˚/90˚ Light | 16/9 | 338/190 lm | 27K,30K,35K,40K | • |
|
Medium Veranda Pillar Light LED
|
| Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
| UVR-70311 - 360˚ Light |
30
|
1605 lm
|
27K,30K,35K,40K
|
•
|
| UVR-70312 - 180˚ Light |
30
|
821 lm
|
27K,30K,35K,40K
|
•
|
| UVR-70313 - 90˚/90˚ Light | 30 | 804 lm | 27K,30K,35K,40K | • |
Photometric and Downloads
| Product Information |
| Veranda photometric IES |
| Veranda CAD Files (2D / RFA / 3DS) |
| IFC - BIM |
| Dialux Files .uld |
Installation Instructions
| Product Installation |
| Veranda Installation |
