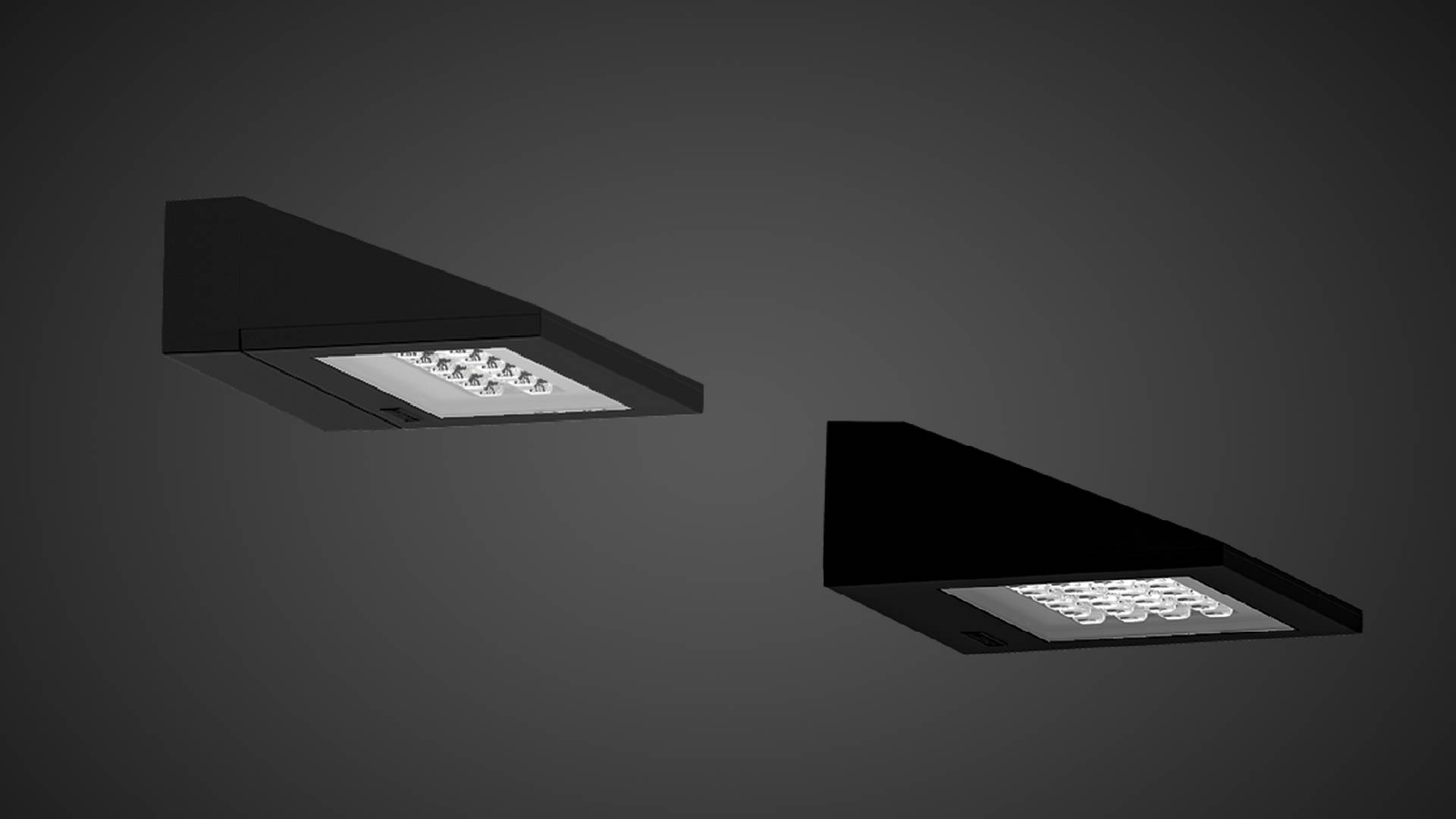

Vekter Wall Washer
Model#: UVK-30XXX Ratings: IP65 F CE IK08 ETL IDA
The Vekter is a wedge-shaped, low-profile, wall-mounted luminaire designed specifically for downlight applications. It features high-powered LEDs and a selection of optics to meet a variety of lighting requirements.
Available with Type II, III, IV, and V light distribution options, the Vekter enables wider fixture spacing and consistent illumination. With a Type II optic, spacings of up to 40 feet on center can be achieved while maintaining uniformity that complies with path of egress requirements—resulting in energy savings and reduced installation costs.
The luminaire can also be configured with mixed beam optics, such as combining Type II and Type IV within the same fixture, to achieve custom light distribution. Integral electronic control gear is housed in a waterproof enclosure, and a mounting plate compatible with 3" and 4" octagonal junction boxes is included.
Ideal for lighting footpaths, building facades, entrances, and surrounding parking areas, the Vekter delivers reliable performance, efficiency, and clean architectural styling.

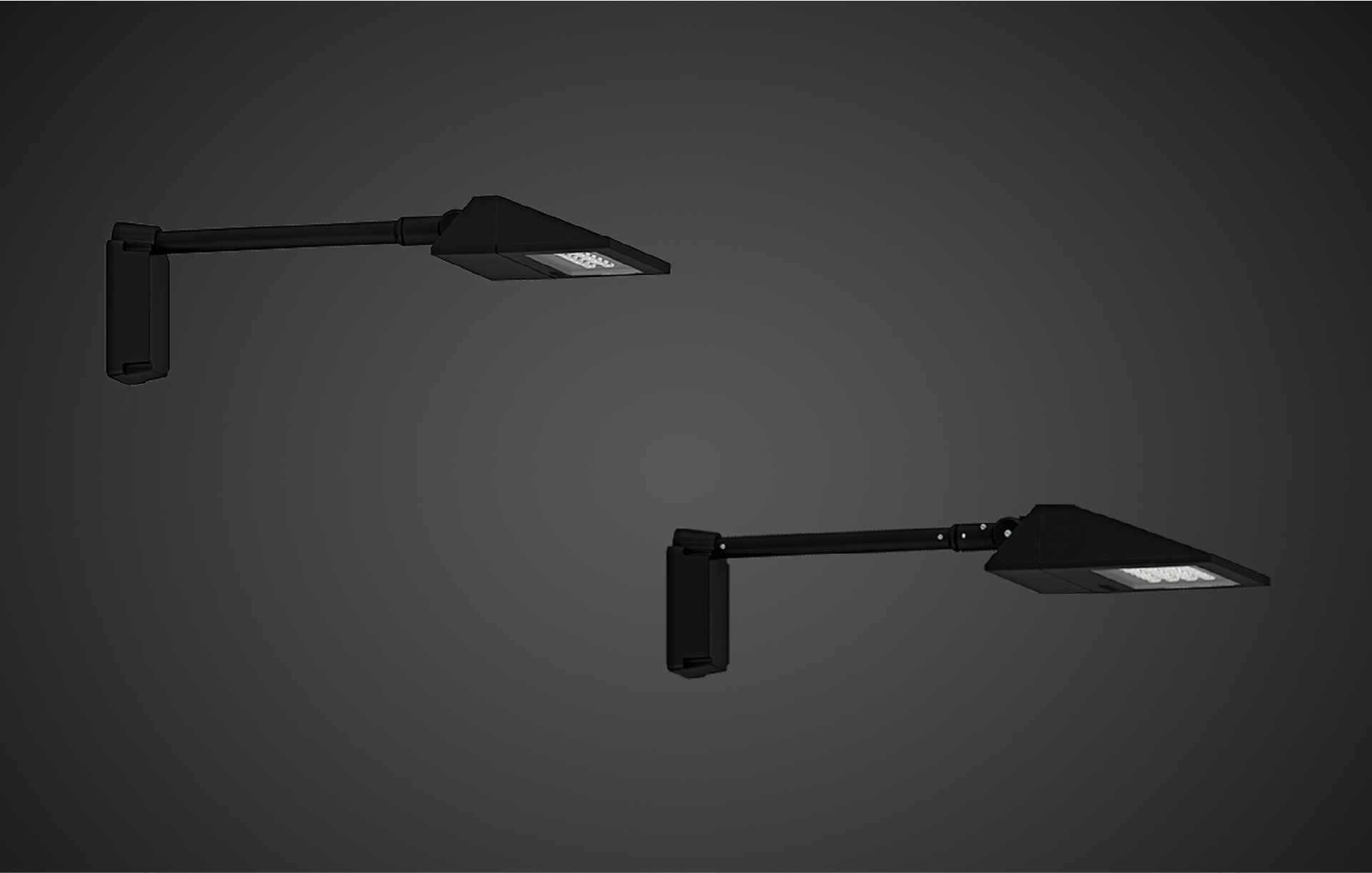

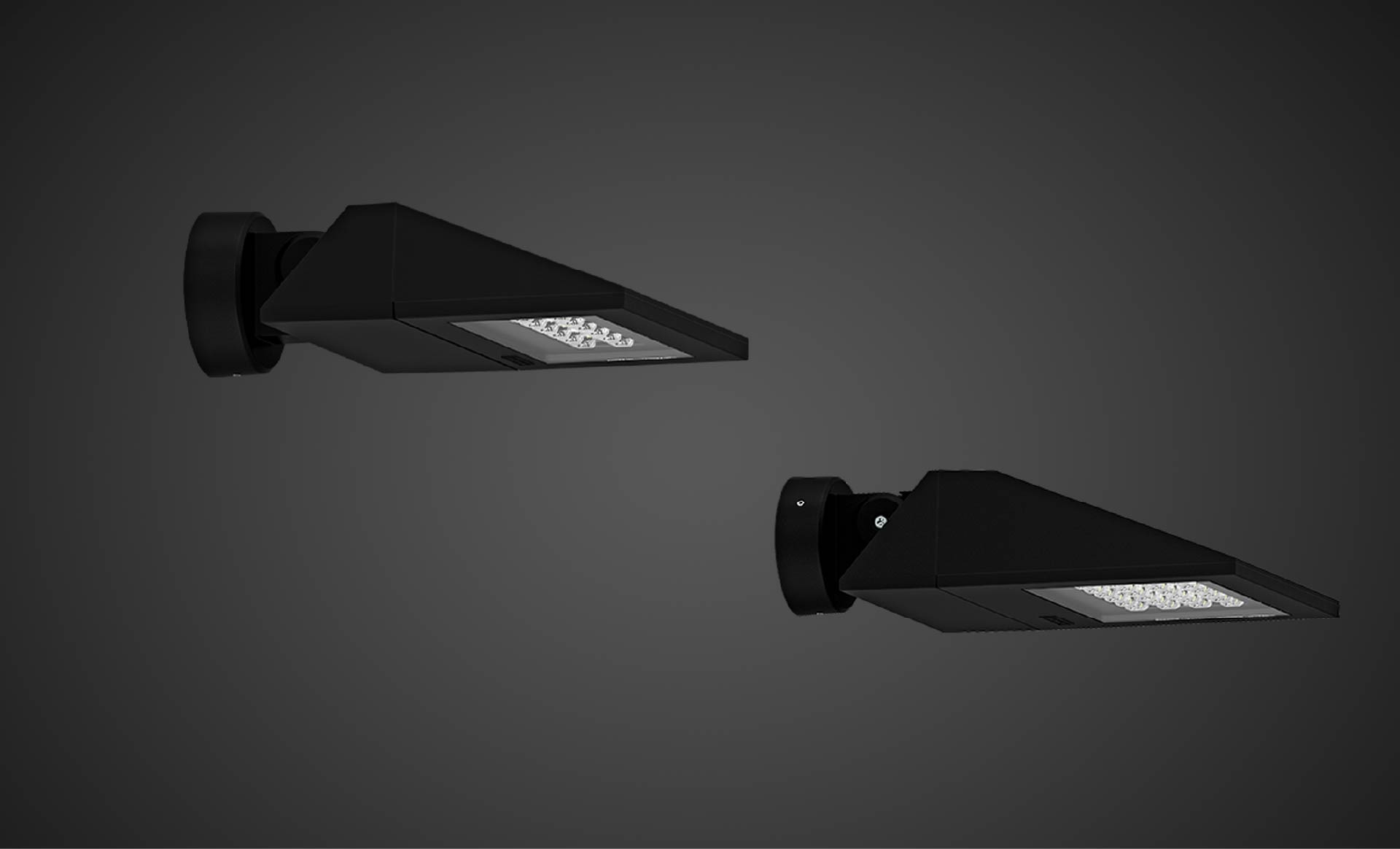

Other Fixtures in the Vekter Design Family:
Spec Sheets and Downloads for Vekter Wall Washer
Specification Sheets
|
Vekter LED Small Wall Washer
|
| Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
| UVK-30001 | 21 | 2446 lm | 27K,30K,35K,40K, • |
31°,53°,66°,110°, T2, T3, T4 |
• |
| UVK-30002 | 28 | 3308 lm | 27K,30K,35K,40K, • |
31°,53°,66°,110°, T2, T3, T4 |
• |
• = Amber LED
|
Vekter LED Medium Wall Washer
|
| Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
| UVK-30003 | 37 | 5073 lm | 27K,30K,35K,40K |
32°,52°,65°,108°, T2, T3, T4 |
• |
| UVK-30004 | 54 | 6879 lm | 27K,30K,35K,40K |
32°,52°,65°,108°, T2, T3, T4 |
• |
Photometric and Downloads
| Product Information |
| Vekter photometric IES |
| Vekter photometric report /BUG Rating (PDF) |
| Vekter CAD Files (2D / RFA / 3DS) |
| IFC - BIM |
| Dialux Files .uld |
