Vekter Extended Arm, IDA: Horizontal
Model#: UVK-3000XX Ratings: IP65 F CE IK09 ETL IDA

The Vekter with Adjustable Extended Arm is a wedge-shaped, low-profile, wall-mounted luminaire designed specifically for downlight applications where extended reach and precise aiming are required. This variant features an elongated adjustable arm, offering greater flexibility in positioning the light source for optimal coverage.
It comes equipped with high-powered LEDs and a selection of optics to meet a variety of lighting needs. The Vekter is available with Type II, III, IV, and V light distribution options, allowing for wider spacing and consistent illumination between fixtures. With a Type II optic, spacings of up to 40 feet on center can be achieved while maintaining uniformity that complies with path of egress requirements—delivering energy savings and reduced installation costs.
Custom beam configurations are also possible, such as combining Type II and Type IV optics within the same fixture to achieve tailored light distribution. The integral electronic control gear is housed in a waterproof enclosure, and a mounting plate compatible with 3" and 4" octagonal junction boxes is included.
Ideal for lighting footpaths, building facades, entrances, and surrounding parking areas, the Vekter with Extended Adjustable Arm offers enhanced reach, precision, and performance in a sleek, durable design.
Other Fixtures in the Vekter Design Family:
Spec Sheets and Downloads for Vekter Extended Arm, IDA: Horizontal
Specification Sheets

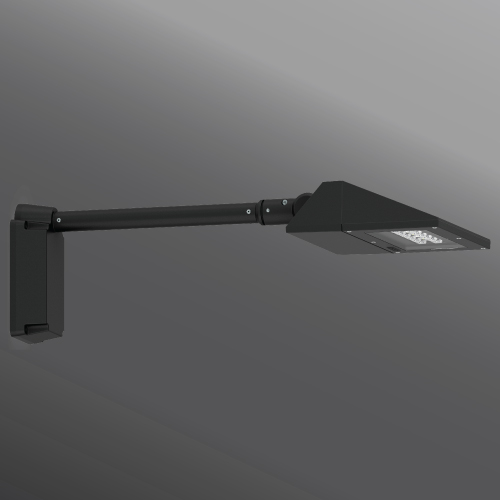

Vekter 7 Medium Extended Arm
|
Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
UVK-30011 | 21 | 2251 lm | 27K,30K,35K,40K, • |
31°,53°,66°,110°, T2, T3, T4 |
• |
UVK-30012 | 28 | 3308 lm | 27K,30K,35K,40K, • |
31°,53°,66°,110°, T2, T3, T4 |
• |
• = Amber LED

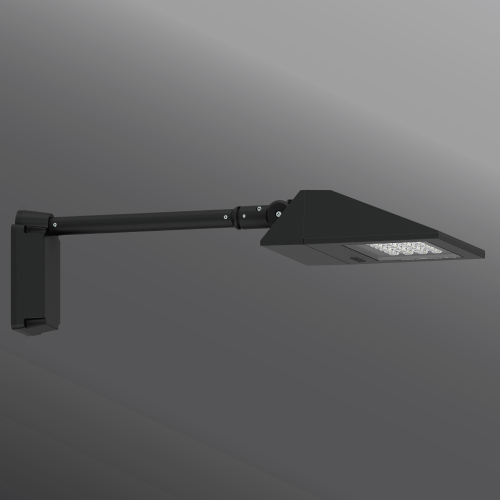

Vekter 8 Large Extended Arm
|
Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
UVK-30031 | 37 | 5073 lm | 27K,30K,35K,40K |
32°,52°,65°,108°, T2, T3, T4 |
• |
UVK-30032 | 54 | 6879 lm | 27K,30K,35K,40K |
32°,52°,65°,108°, T2, T3, T4 |
• |
Photometric and Downloads
Product Information |
Vekter photometric IES |
Vekter photometric report /BUG Rating (PDF) |
Vekter CAD Files (2D / RFA / 3DS) |
IFC - BIM |
Dialux Files .uld |
