Jet Ceiling Mount
Model#: UJE-80XXX, UJE-800XX, UJE-801XX Ratings: IP65 F CE IK08 ETL
Suitable for wet locations A range of cylindrical and square shape surface mounted exterior downlight luminaires. The luminaires are suitable for indoor and outdoor applications for use in residential, shopping and public areas as surface ceiling downlights. The luminaires have features such as long life, limited maintenance and constant lifetime performance. The luminaire is rated as class I with the high power LED integral driver. Low copper content die-cast aluminium housing with a chemical chromatized protection before powder coating, ensuring high corrosion resistance. Stainless steel screws. Power is provided to the luminaire through water tight single cable gland. Durable silicone rubber gasket and clear toughened glass.
Other Fixtures in the Jet Design Family:
Spec Sheets and Downloads for Jet Ceiling Mount
Product Overview

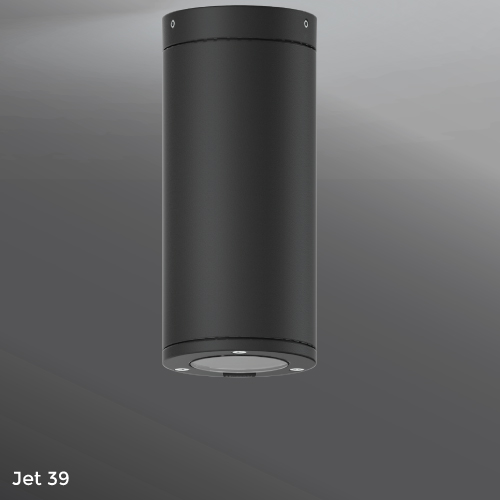

Jet 39 Cylindrical Surface Exterior Downlight Dia 4” COB
|
|
Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
UJE-80031 | 14 | 1618 lm | 27K,30K,35K,40K | 20°-24°-36°-71° | • |

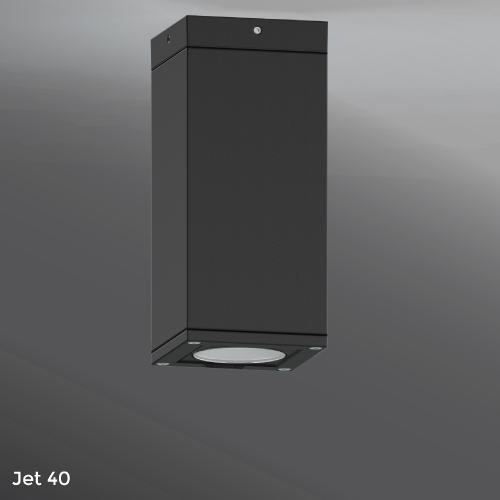

Jet 40 Square Surface Exterior Downlight Dia 4” COB
|
|
Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
UJE-80041 | 14 | 1618 lm | 27K,30K,35K,40K | 20°-24°-36°-71° | • |

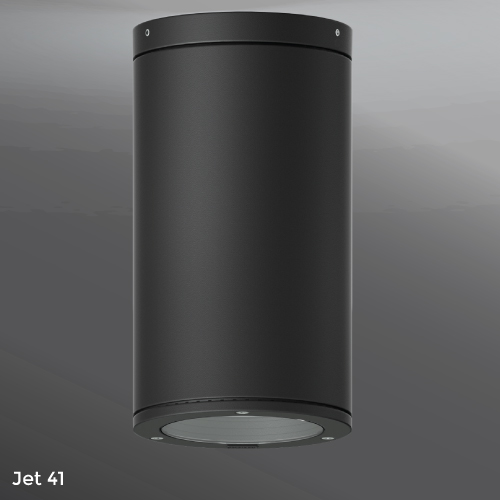

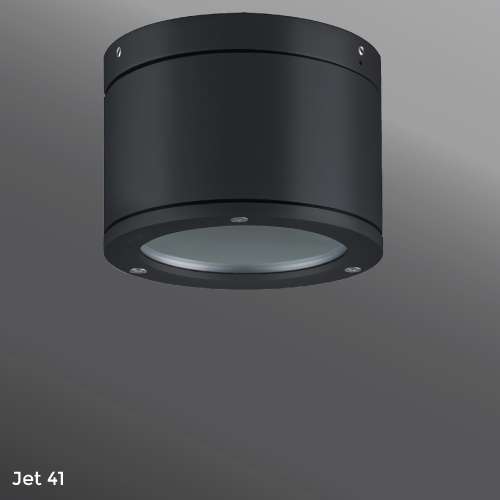

Jet 41 Cylindrical Surface Exterior Downlight 6.3" COB
|
|
Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
UJE-80051 | 39 | 4094 lm | 27K,30K,35K,40K | 13°-20°-40°-61° | • |
Jet 41 Cylindrical Surface Exterior Downlight 6.3" COB
|
|
Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
UJE-80052 | 20 | 2284 lm | 27K,30K,35K,40K | 22°-35°-52°-46°x56˚ | • |

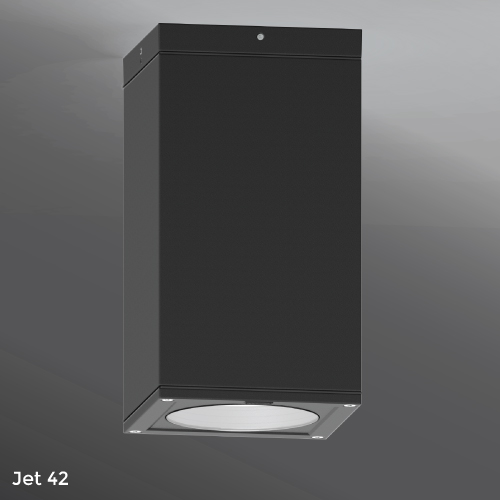

Jet 42 Square Surface Exterior Downlight 6.3" COB
|
|
Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
UJE-80061 | 39 | 4094 lm | 27K,30K,35K,40K | 13°-20°-40°-61° | • |
Jet 42 Square Surface Exterior Downlight 6.3" COB
|
|
Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
UJE-80062 | 20 | 2284 lm | 27K,30K,35K,40K | 22°-35°-52°-46°x56˚ | • |
Specification Sheets and Downloads
Product Information |
Jet square photometric IES |
Jet square CAD Files (2D / RFA / 3DS) |
IFC - BIM |
Dialux Files .uld |
