Vancouver Light Column
Model#: UVA-20001 Ratings: IP65 IP66 CE IK08 ETL IDA

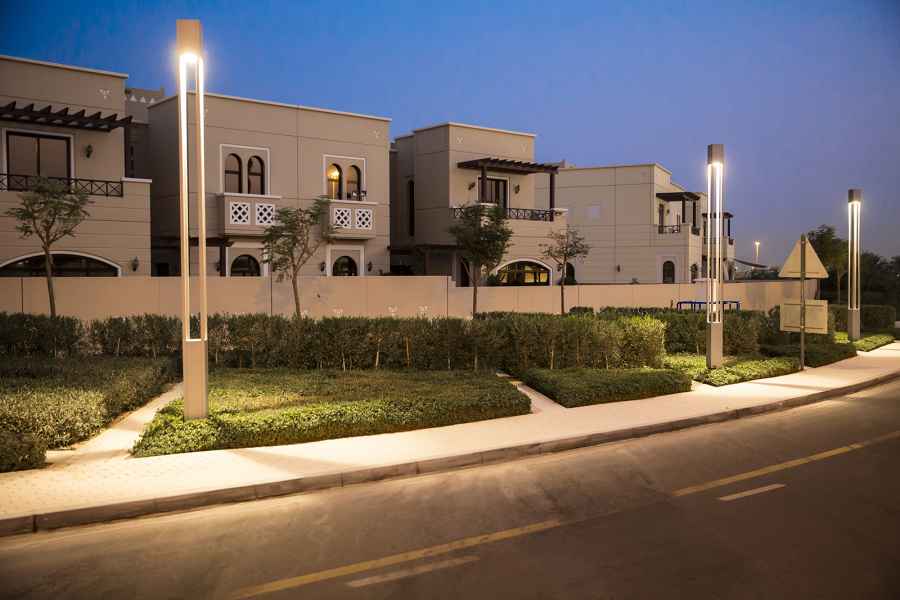

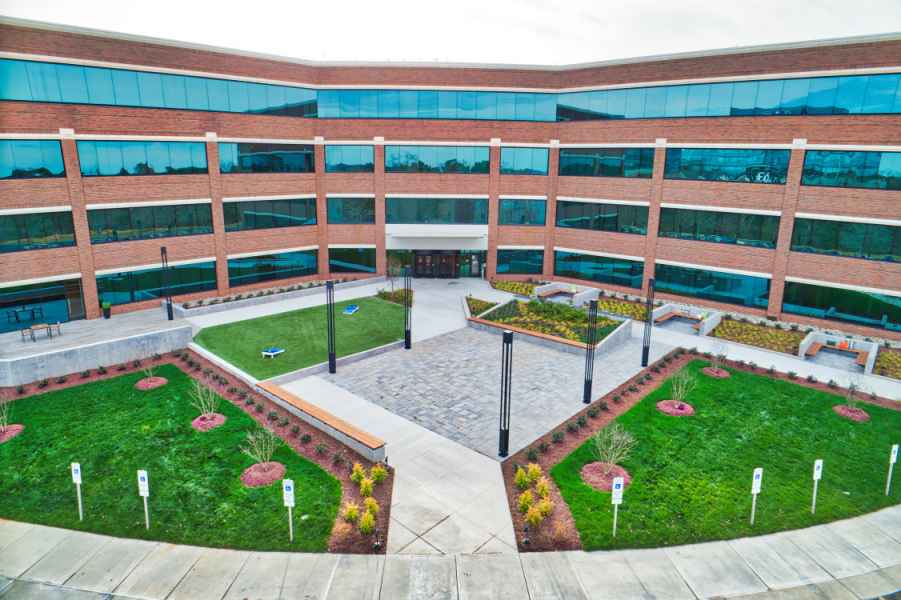

A stylish Dark Sky Compliant square high performance light column with downward light distribution using LED lamps. This light column offers optimal visual comfort through glare control by utilizing a controlled optics designed by Ligman. These columns have a square design providing a unique wide light distribution, offering an architecturally appealing clover leaf pattern on the paving. The internal sides of the supporting pillars are accented by light from the LED. Color temperature 2700K, 3000K and 4000K. The minimalistic shape provides distinctive lighting effects by night and decorative urban effect during the day. Suitable for pedestrian areas, precincts, building surrounds, shopping centers, squares and parks. The Vancouver Column comes standard with a unique waterproof internal driver housing compartment that is situated at the top of the pole to stop water and dust from entering the electrical components. This fixture is supplied completely wired with powercord and waterproof gland from the driver enclosure to the base of the column to ensure quick trouble-free installation. The Vancouver has a specially designed anchor bolt mounting base that is partially buried below ground level to provide a flush fixture finish with the surface, but maintains the rigidity that is required when installing light columns. This ensures that the anchor bolts are not seen and therefore eliminates the necessity for an anchor bolt cover. ( review installation instructions before installing the anchor bolts.) Custom column heights are available, please specify. Provided with anchor bolts (the root mount kit is an option and is an adder) Reduced custom wattages can be provided to suit customer requirements. (Specify total watt requirement per fixture) Designed to complement the Vancouver bollard. This product is provided complete with anchor bolts and laser cut steel bolt template.
Other Fixtures in the Vancouver Design Family:
Spec Sheets and Downloads for Vancouver Light Column
Specification Sheets
Vancouver
|
Model No. |
Watts
|
Lumens
|
Kelvin
|
Height
|
Dimmable 1-10V
|
Vancouver 1 9.4" Square |
|||||
UVA-20001 | 40 | 2969 lm | 27K,30K,35K,40K | 14.7' | • |
Vancouver 2 6.3" Square |
|||||
UVA-20011 |
20
|
1414 lm
|
27K,30K,35K,40K
|
9.8'
|
•
|
Vancouver 8 9.4" Square |
|||||
UVA-20051 | 39 | 1336 lm | 27K,30K,35K,40K | 12.1' | • |
Vancouver 9 9.4" Square |
|||||
UVA-20061 | 39 | 1167 lm | 27K,30K,35K,40K | 12.1' | • |
Vancouver 10 9.4" Square |
|||||
UVA-20071 | 39 | 1670 lm | 27K,30K,35K,40K | 12.1' | • |
Top Floodlight Attachments | |||||
Vancouver 5 9.4" Square |
|||||
UVA-20021 | 39+21 | 1336 lm + 1673lm | 27K,30K,35K,40K | 13.3' | • |
UVA-20022 | 39+2x21 | 1336 lm + 2x1673lm | 27K,30K,35K,40K | 14.5' | • |
UVA-20023 | 39+3x21 | 1336 lm + 3x1673lm | 27K,30K,35K,40K | 15.7' | • |
Vancouver 6 9.4" Square |
|||||
UVA-20031 | 39+21 | 1167 lm + 1673lm | 27K,30K,35K,40K | 13.3' | • |
UVA-20032 | 39+2x21 | 1167 lm + 2x1673lm | 27K,30K,35K,40K | 14.5' | • |
UVA-20033 | 39+3x21 | 1167 lm + 3x1673lm | 27K,30K,35K,40K | 15.7' | • |
Vancouver 7 9.4" Square |
|||||
UVA-20041 | 39+21 | 1670 lm + 1673lm | 27K,30K,40K | 13.3' | • |
UVA-20042 | 39+2x21 | 1670 lm + 2x1673lm | 27K,30K,40K | 14.5' | • |
UVA-20043 | 39+3x29 | 1670 lm + 3x1673lm | 27K,30K,40K | 15.7' | • |
Vancouver RGBW
|
Model No. |
Watts
|
Lumens
|
Kelvin
|
Height
|
Dimmable 1-10V
|
Vancouver 16 1 - 4 Floodlights 9.4" Square |
|||||
UVA-20111 - 1 Floodlight | 33/33w | 2x1158 lm | RGBW | 13.3' | |
UVA-20112 - 2 Floodlights | 33/2x33w | 3x1158 lm | RGBW | 14.5' | |
UVA-20113 - 3 Floodlights | 33/3x33w | 4x1158 lm | RGBW | 15.7' | |
UVA-20114 - 4 Floodlights | 33/4x33w | 5x1158 lm | RGBW | 17' | |
Vancouver 17 1 - 4 Floodlights 9.4" Square |
|||||
UVA-20121 - 1 Floodlight | 33/33w | 2x1158 lm | RGBW | 13.3' | |
UVA-20122 - 2 Floodlights | 33/2x33w | 3x1158 lm | RGBW | 14.5' | |
UVA-20123 - 3 Floodlights | 33/3x33w | 4x1158 lm | RGBW | 15.7' | |
UVA-20124 - 4 Floodlights | 33/4x33w | 5x1158 lm | RGBW | 17' | |
Vancouver 18 1 - 4 Floodlights 9.4" Square |
|||||
UVA-20131 - 1 Floodlight | 33/33w | 2x1158 lm | RGBW | 13.3' | |
UVA-20132 - 2 Floodlights | 33/2x33w | 3x1158 lm | RGBW | 14.5' | |
UVA-20133 - 3 Floodlights | 33/3x33w | 4x1158 lm | RGBW | 15.7' | |
UVA-20134 - 4 Floodlights | 33/4x33w | 5x1158 lm | RGBW | 17' | |
Vancouver 19 1 - 4 Floodlights 9.4" Square |
|||||
UVA-20141 - 1 Floodlight | 33/33w | 2x1158 lm | RGBW | 13.3' | |
UVA-20142 - 2 Floodlights | 33/2x33w | 3x1158 lm | RGBW | 14.5' | |
UVA-20143 - 3 Floodlights | 33/3x33w | 4x1158 lm | RGBW | 15.7' | |
UVA-20144 - 4 Floodlights | 33/4x33w | 5x1158 lm | RGBW | 17' | |
Vancouver 20 9.4" Square |
|||||
UVA-20151 | 33w | 1158 lm | RGBW | 13.3' | |
Vancouver 21 9.4" Square |
|||||
UVA-20161 | 33w | 1158 lm | RGBW | 12.1' | |
Vancouver 22 9.4" Square |
|||||
UVA-20171 | 33w | 1158 lm | RGBW | 12.1' | |
Vancouver 23 9.4" Square |
|||||
UVA-20181 | 33w | 1158 lm | RGBW | 12.1' |
Vancouver 55 6.3" Square |
||||
UVA-20251 | 21w | 710 lm | 27K,30K,35K,40K | 9.8' |
Vancouver 56 9.4" Square |
||||
UVA-20261 | 40w | 1485 lm | 27K,30K,35K,40K | 14.7' |
Vancouver 60 With Opal Lens 9.4" Square |
||||
UVA-20281 | 76w | 4140 lm | 27K,30K,35K,40K | 12.1' |
Vancouver 61 With Opal Lens 9.4" Square |
||||
UVA-20282 | 76w | 4140 lm | 27K,30K,35K,40K | 12.1' |
Vancouver 62 With Opal Lens 9.4" Square |
||||
UVA-20283 | 76w | 4140 lm | 27K,30K,35K,40K | 12.1' |
Photometric and Downloads
Product Information |
Vancouver Photometric IES |
Vancouver CAD Files (2D / RFA / 3DS) |
IFC - BIM |
Dialux Files .uld |
