Paragon Onground Floodlight
Model#: UPR-50XXX Ratings: IP65 CE IK08 ETL

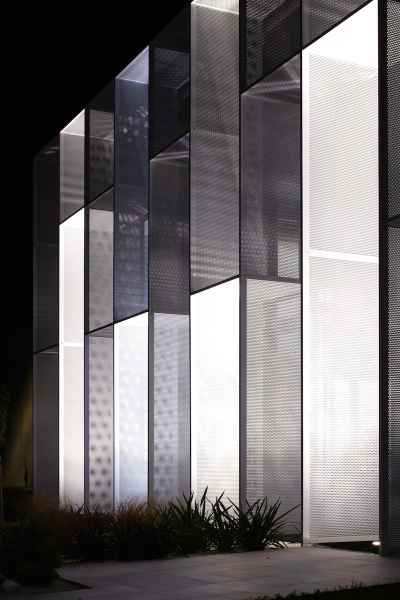

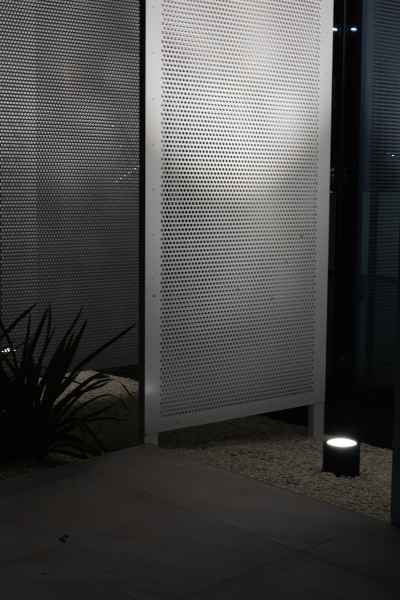

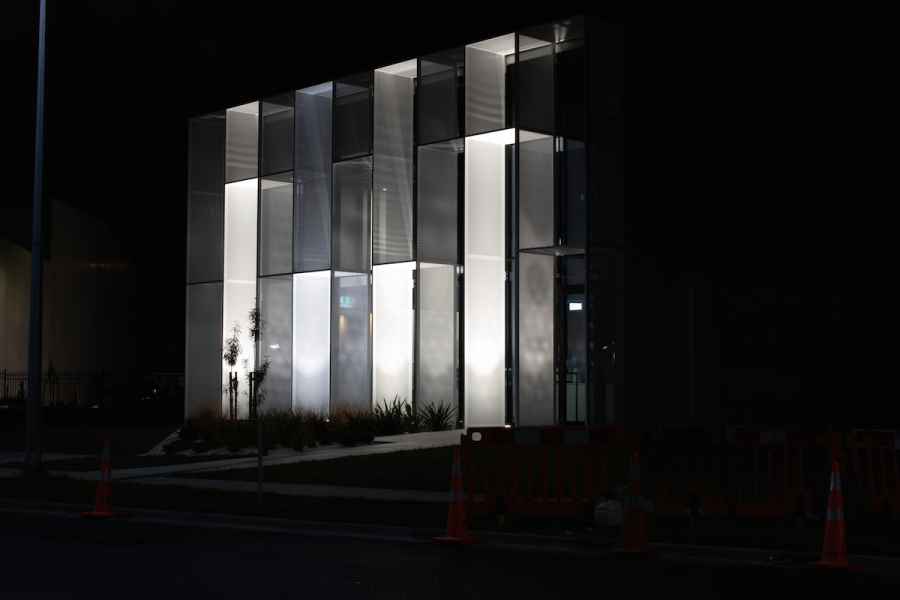

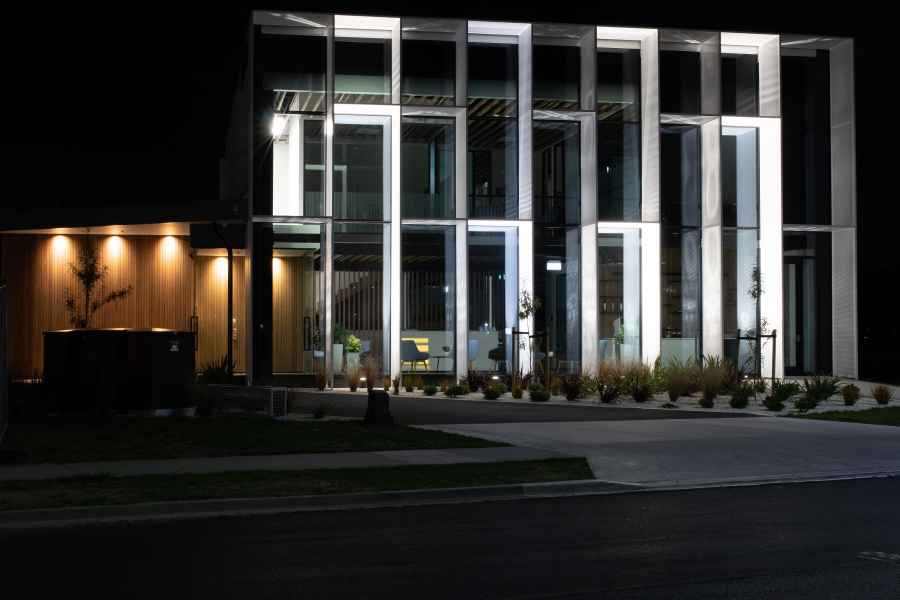

Suitable for wet locations A range of small robust and compact round or square on-ground up-lights for outdoor lighting effects using energy saving LED's, and metal halide lamps. The luminaires have adjustable aiming function that can be locked into place after establishing the required light distribution. Designed for use in squares, parks, residential and shopping areas. This product is excellent for illuminating sculptures, trees and landscape environments where in-ground product is not required. Optional colored diffuser, lenses, filters and louvers are available to control the light. The LED luminaires have features such as long life, limited maintenance and constant lifetime performance. Low copper content corrosion resistant die-cast aluminum body. Integral control gear. All external hardware in stainless steel. Durable silicone rubber gasket and clear toughened glass. Anodized high purity aluminum reflector. The luminaire is treated with a chemical chromatized protection before powder coating, ensuring high corrosion resistance.
Spec Sheets and Downloads for Paragon Onground Floodlight
Specification Sheets
Paragon Onground Uplight Cylindrical Dia 6.29” HP LED
|
Model No. |
Watts
|
Lumens
|
Kelvin
|
Beam
|
Dimmable 0-10V
|
UPR-50001 |
39
|
3104 lm
|
27K,30K,35K,40K
|
13°-20°-40°-61°
|
•
|

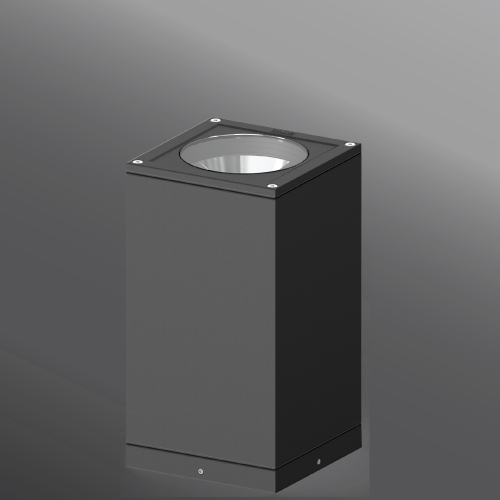

Paragon Onground Uplight Square 6.29” HP LED
|
Model No. |
Watts
|
Lumens
|
Kelvin
|
Beam
|
Dimmable 0-10V
|
UPR-50011 |
39
|
3104 lm
|
27K,30K,35K,40K
|
13°-20°-40°-61°
|
•
|
Accessories
Color Filter | |||
Model No. | |||
![]() |
Red A50716 |
||
![]() |
Blue A50717 |
||
![]() |
Amber A50718 |
||
![]() |
Green A50719 |
Anti glare louvre | Model No. | |
![]() |
A50921 |
Linear spread lens | Model No. | |
![]() |
A50714 |

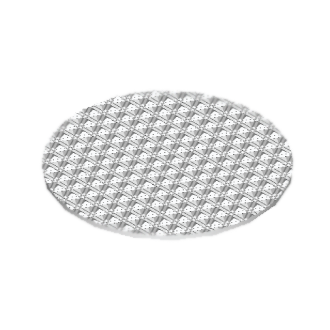

Prismatic lens | Model No. | |
![]() |
A50715 |
Color Filter | |||
Model No. | |||
![]() |
Red A50816 |
||
![]() |
Blue A50817 |
||
![]() |
Amber A50818 |
||
![]() |
Green A50819 |

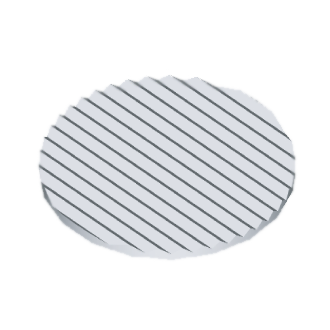

Linear spread lens | Model No. | |
![]() |
A50814 |

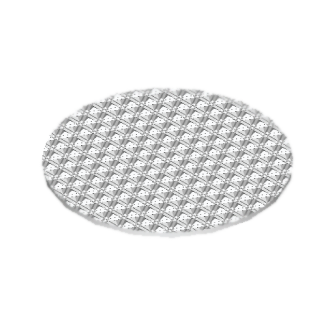

Prismatic lens | Model No. | |
![]() |
A50815 |

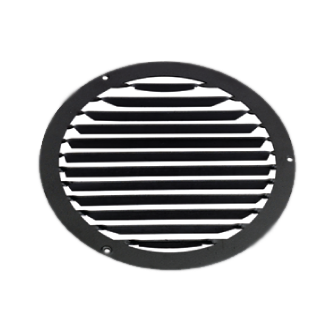

Anti glare louvre | Model No. | |
![]() |
A51021 |
Photometric and Downloads
Product Information |
Paragon photometric IES |
Paragon CAD Files (2D / RFA / 3DS) |
IFC - BIM |
Dialux Files .uld |
