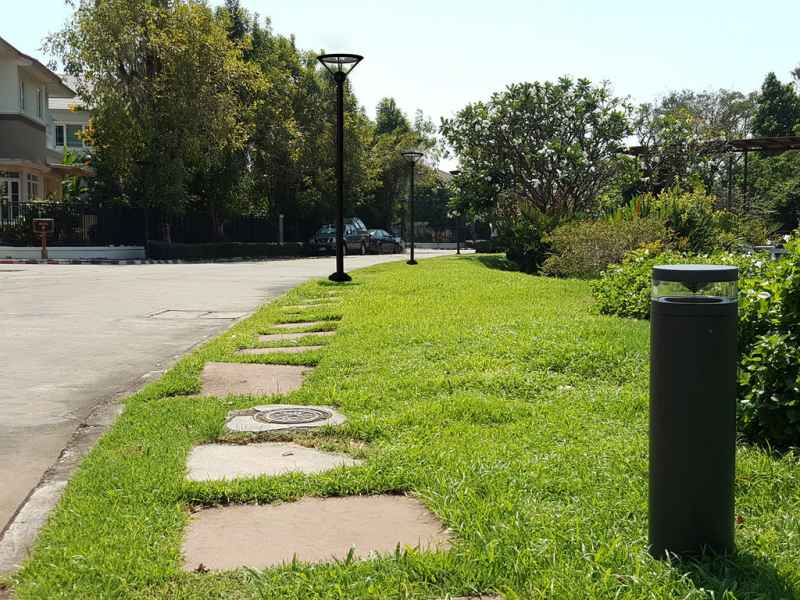

Lightwave Bollard

Model#: ULW-108XX      Ratings:   IP65   F   CE   IK08   ETL

The innovative reflector technology of the Lightwave bollard guarantees a high degree of efficiency and optimal visual comfort. Lightwave has been developed to have excellent controlled downward light providing wide spacing ratios. The Lightwave is available in a straight or tapered shape design with two different heights. The Lightwave bollard comes standard with a unique waterproof internal driver housing compartment that is situated at the top of the pole to stop water and dust from entering the electrical components. This fixture is supplied completely wired with powercord and waterproof gland from the driver enclosure to the base of the bollard ensuring quick trouble-free installation. Custom bollard heights are available, please specify. Color temperature 2700, 3000 and 4000 Kelvin. Custom wattages can be provided to suit customer and Title 24 requirements.

Security Bollard

The Lightwave 2 bollard is available as a traffic rated security bollard. This optional design includes a 1/4" thick wall galvanized steel security pole with 2 solid 1" galvanized steel cross support rods that are embedded into concrete. This security bollard provides restraint of vehicular traffic in unauthorized areas. Impact studies show that this bollard will stop a 5,500lb vehicle that is travelling at 30mph. For added strength, the galvanized pole can be filled with concrete up to the waterproof driver housing to provide a solid concrete barrier.

Jump down to Spec Sheets


Other Fixtures in the Lightwave Design Family:

Click to view Ligman Lighting's  Lightwave (model ULW-30001).

ULW-30001

Spec Sheets and Downloads for Lightwave Bollard
