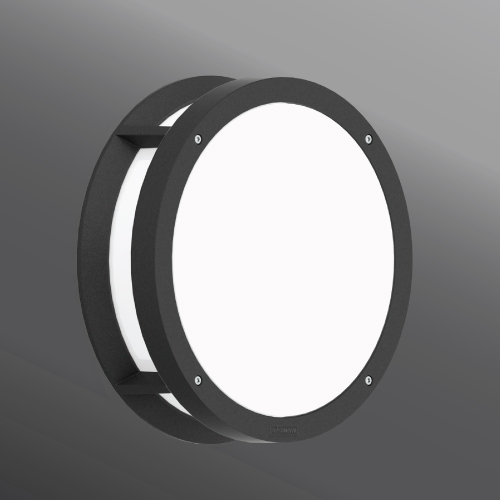

Itac Wall Light
Model#: UIT-31XXX Ratings: IP65 F CE IK08 ETL
A range of vandal resistant circular wall and ceiling mounted sconces with an option of flat or dome front opal vandal resistant UV stabilized polycarbonate diffuser that gives off a subtle backlight. Ideal for numerous indoor or outdoor applications. This luminaire can be provided with an integral occupancy sensor. The Itac 1 has a flat front lens and the Itac 2 is provided with a dome front. All Ligman fixtures can be manufactured using a special pre-treatment and coating process that ensures the fixture can be installed in natatoriums as well as environments with high concentrations of chlorine or salt and still maintain the 5 year warranty. For this natatorium rated process please specify NAT in options.
Spec Sheets and Downloads for Itac Wall Light
Specification Sheets
Itac Surface 1 LED
|
|
Model No. | Watts | Lumens | Kelvin | Dimmable 1-10V |
UIT-31961 | 20 | 1680 lm | 27K,30K,35K,40K | • |
Itac Surface 2 LED
|
|
Model No. | Watts | Lumens | Kelvin | Dimmable 1-10V |
UIT-31971 | 20 | 1764 lm | 27K,30K,35K,40K | • |
Photometric and Downloads
Product Information |
Itac photometric IES |
Itac CAD Files (2D / RFA / 3DS) |
IFC - BIM |
Dialux Files .uld |
Installation Instructions
Product Installation |
Itac Installation |
