Harrier 4.72"
Model#: UHA-60XXX Ratings: IP67 Class II F CE IK10 ETL
Suitable for wet locations A top range of inground uplights with a choice of round or square stainless steel or aluminum front rings, suitable illuminate shopping and pedestrian areas, parks, gardens and sculptures. Main characteristics are low glare The LED luminaires have features such as long life, limited maintenance and constant lifetime performance. This product has a standard 'touchable glass' ideally suited for spaces used by the general public. To ensure efficient drainage, gravel must be used to a depth of 17" beneath the housing, and should also be placed around the luminaire. Low copper content die-cast aluminum housing with high corrosion resistance. The 0.24" thick front ring is available in grade 316 stainless steel or aluminum. Stainless steel fasteners in grade 316. Power is provided through a single PG1/2" water tight cable gland. Durable silicone rubber gasket and clear toughened 0.31" thick glass, walk over 440lbs. maximum. Body is treated with a chemical chromatized protection before powder coating, ensuring high corrosion resistance. Remote driver on site by installer. Recessing box in high density polyethylene. Optional ADA anti slip surface.
Other Fixtures in the Harrier Design Family:
Spec Sheets and Downloads for Harrier 4.72"
Specification Sheets
Harrier 1 Round 4.72"
|
|
Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
UHA-60036 | 6 | 291 lm | 27K,30K,35K,40K, | - | • |
UHA-60385 | 8 | 427 lm | 27K,30K,35K,40K | 20˚- 30˚- 50˚ | • |
UHA-60386 | 8 | 555 lm | 27K,30K,35K,40K | 8˚ | • |

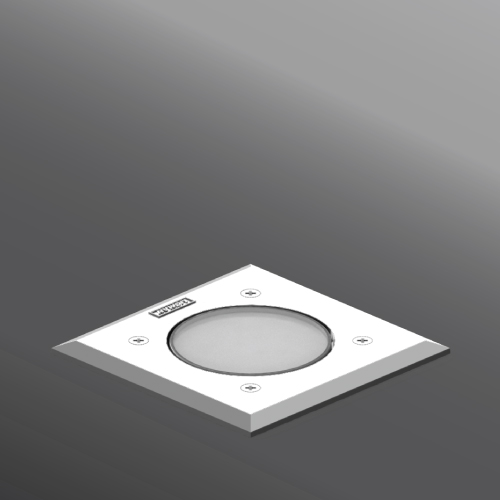

Harrier 2 Square 4.72"
|
|
Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
UHA-60196 | 6 | 291 lm | 27K,30K,35K,40K, | - | • |
UHA-60395 | 8 | 427 lm | 27K,30K,35K,40K | 20˚- 30˚- 50˚ | • |
UHA-60396 | 8 | 555 lm | 27K,30K,35K,40K | 8˚ | • |
Accessories
Recessing box | ||
Remote box IP65 A80191 Dimension : W2.95"xL10.08"xH2.28" |
For ECG | |
Remote box IP65 A80291 Dimension : W3.74"xL10.08"xH2.95" |
For CCG |
Recessing box | |
A60151 |

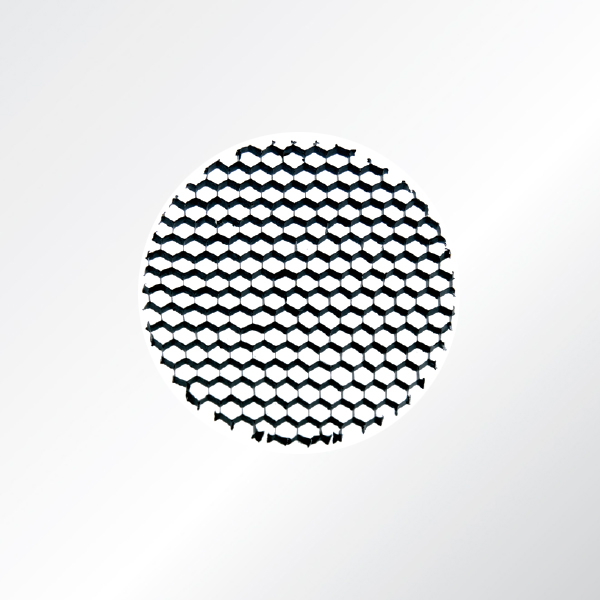

Honey comb louvre | |
A60121 |
Color Filter | |
A60116 Red |
|
A60117 Blue |
|
A60118 Amber |
|
A60119 Green |
