Gino Wall Light
Model#: UGI-31XXX Ratings: IP65 F CE IK07 ETL IDA

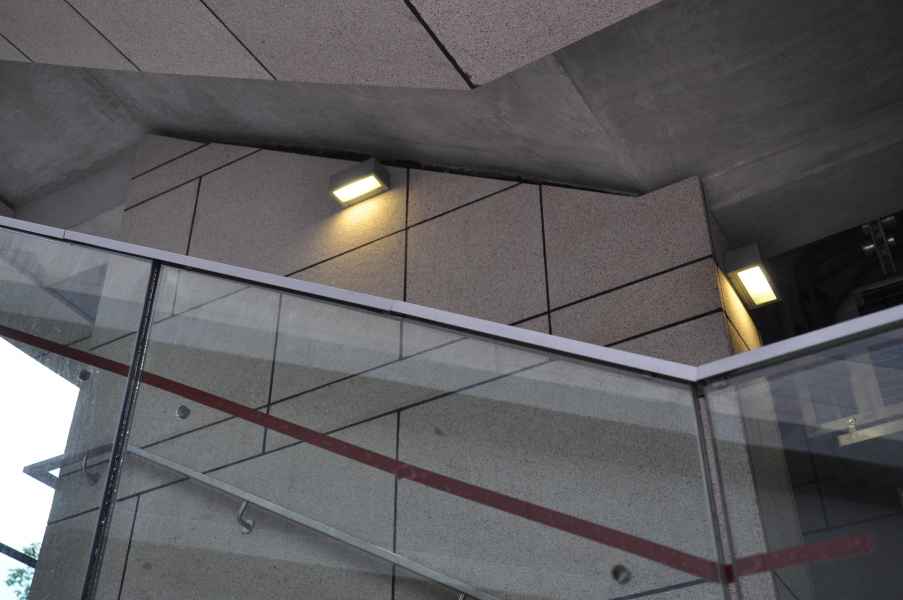

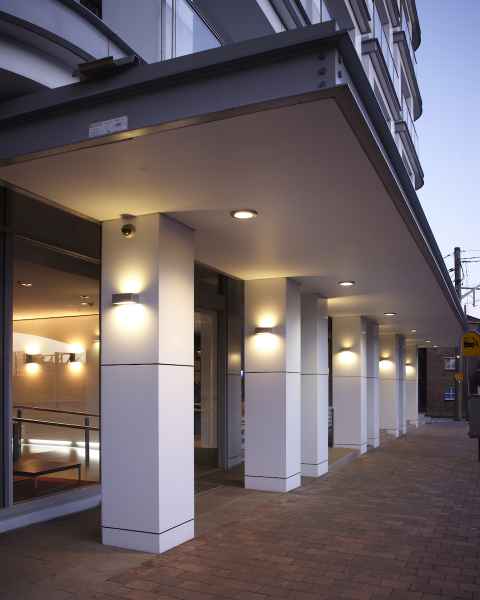

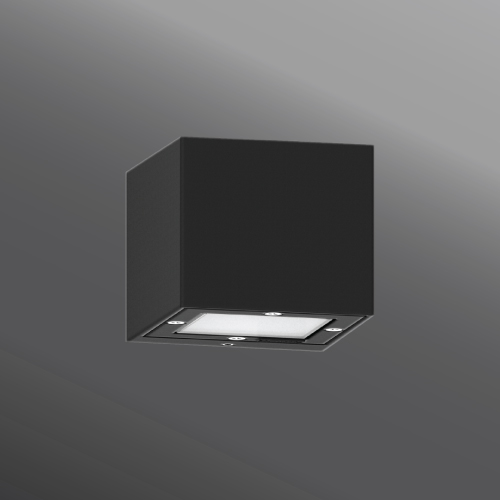

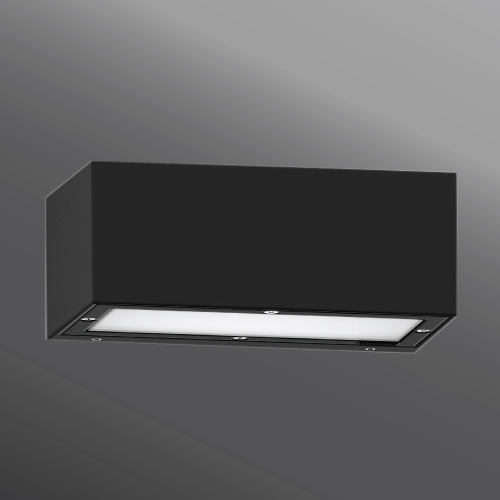

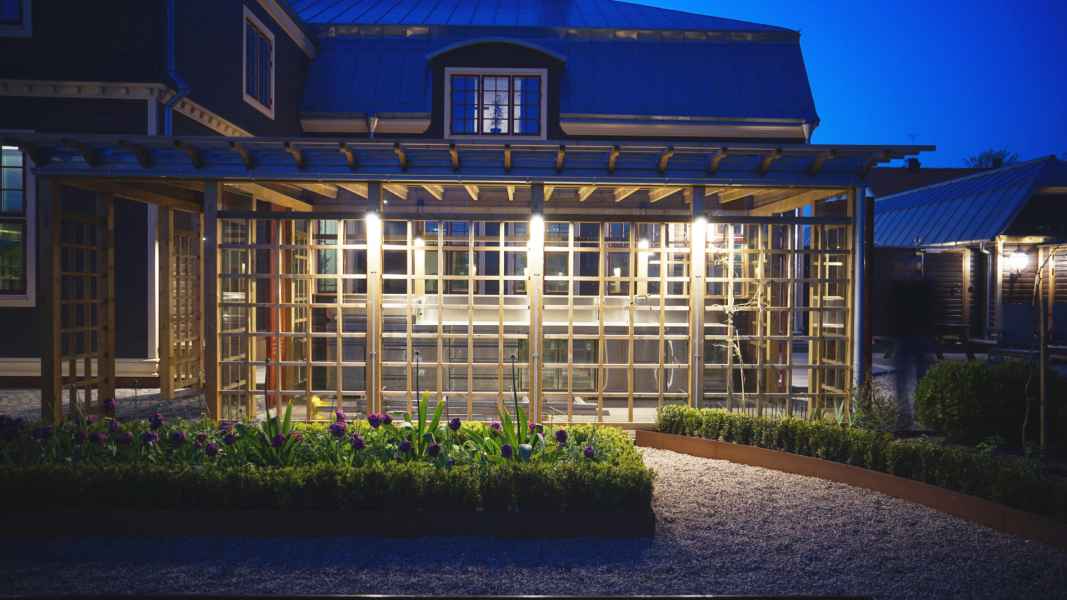

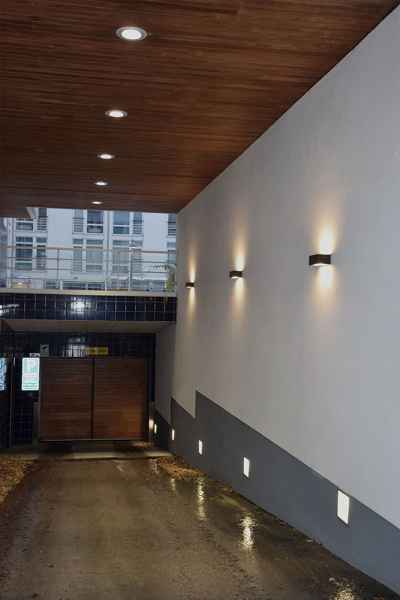

A range of small, square and rectangular wall mounted luminaires with options of upward or downward light distributions. Ideally suited to illuminate the wall and surfaces in front of wall and for light accents on vertical surfaces using high efficiency LED's. The Gino is suitable for indoor and outdoor applications and provides a clean, visually appealing solution for small, unobtrusive wall mounted luminaires. This luminaire is available in 2 different sizes and in combinations of down, up or up/down light distributions. The Gino 1 and Gino 2 have a decorative spike option for added lighting effects. The Gino 1 and 2 mounts over a 3" octagonal junction box, a 4" j-box cover plate is available upon request. Frosted or clear lenses are available.
Other Fixtures in the Gino Design Family:
Spec Sheets and Downloads for Gino Wall Light
Specification Sheets
Gino 1 LED
|
|
Model No. | Watts | Lumens | Kelvin | Dimmable 1-10V |

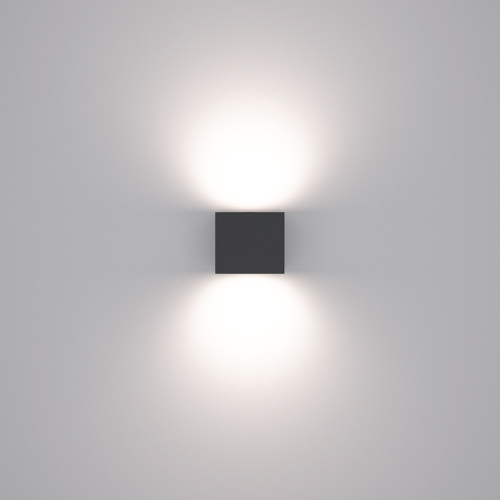

UGI-31581 | 2x4 | 2x236 lm | 27K,30K,35K,40K | |
Gino 1 LED with Type II, III & IV Distribution | ||||
UGI-31631 | 2x6 | 2x444lm | 27K,30K,35K,40K |
Gino 1 LED
|
|
Model No. | Watts | Lumens | Kelvin | Dimmable 1-10V |
UGI-31582 | 2x2 | 2x51 lm | 27K,30K,35K,40K, • |
• = Amber LED
Gino 1 LED
|
|
Model No. | Watts | Lumens | Kelvin | Dimmable 1-10V |

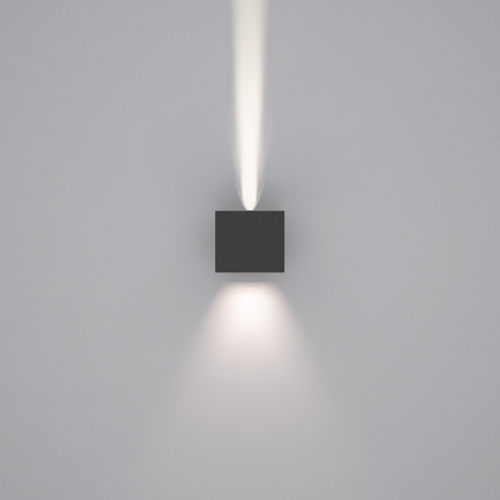

UGI-31583 | 2x2 | 2x27 lm | 27K,30K,35K,40K, • |
• = Amber LED
Gino 1 LED
|
|
Model No. | Watts | Lumens | Kelvin | Dimmable 1-10V |

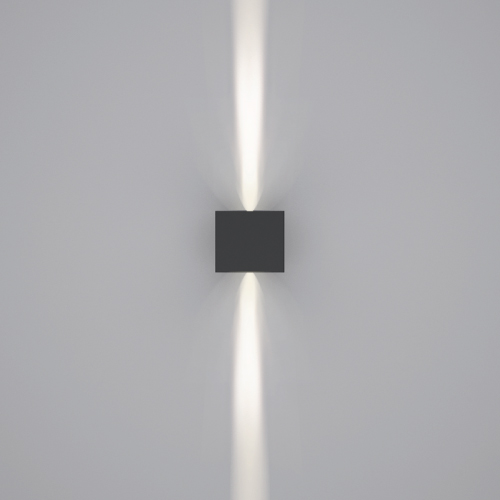

UGI-31584 | 2x2 | 2x3 lm | 27K,30K,35K,40K, • |
• = Amber LED
Gino 3 LED
|
|
Model No. | Watts | Lumens | Kelvin | Dimmable 1-10V |

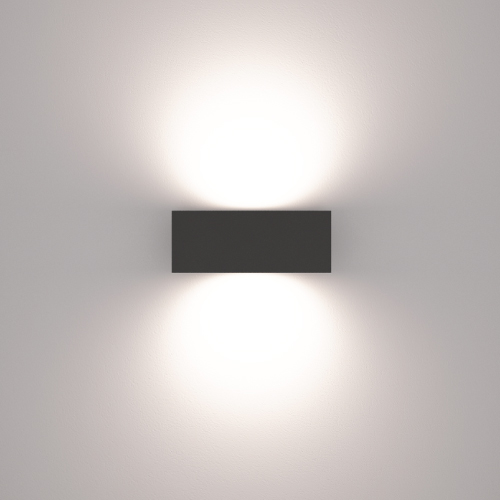

UGI-31601 | 2x8 | 2x564 lm | 27K,30K,35K,40K | |
Gino 3 LED with Type II, III & IV Distributions | ||||
UGI-31651 | 2x10 | 2x982 lm | 27K,30K,35K,40K, • | • |
• = Amber LED
Gino 2 LED
|
|
Model No. | Watts | Lumens | Kelvin | Dimmable 1-10V |

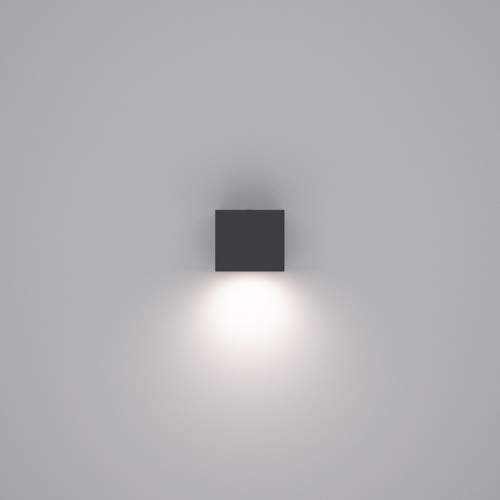

UGI-31591 | 5 | 236 lm | 27K,30K,35K,40K | |
Gino 2 LED with Type II, III & IV Distributions | ||||
UGI-31621 | 6 | 444 lm | 27K,30K,35K,40K |
Gino 2 LED
|
|
Model No. | Watts | Lumens | Kelvin | Dimmable 1-10V |

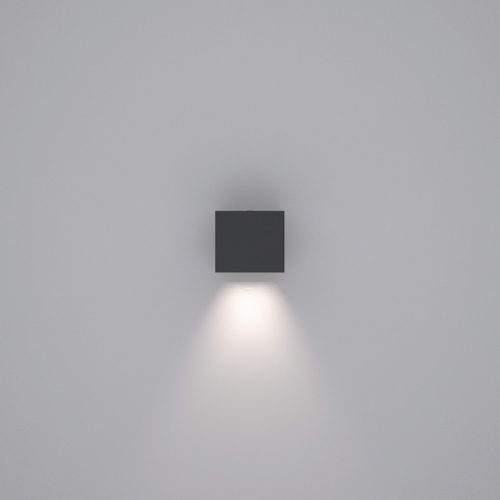

UGI-31592 | 2 | 51 lm | 27K,30K,35K,40K, • |
• = Amber LED
Gino 2 LED
|
|
Model No. | Watts | Lumens | Kelvin | Dimmable 1-10V |

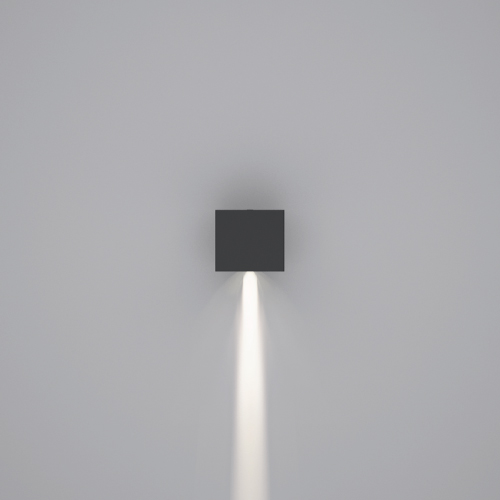

UGI-31593 | 2 | 3 lm | 27K,30K,35K,40K, • |
• = Amber LED
Gino 4 LED
|
|
Model No. | Watts | Lumens | Kelvin | Dimmable 1-10V |

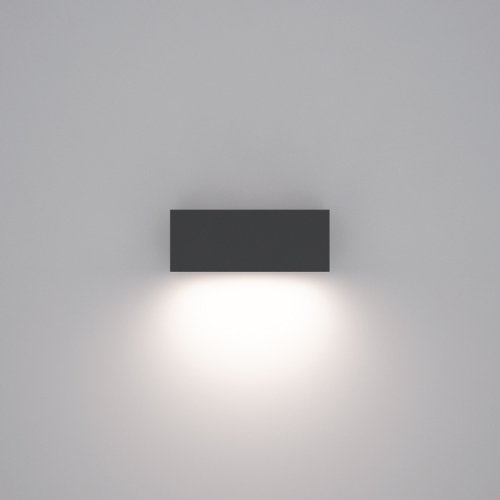

UGI-31611 | 8 | 564 lm | 27K,30K,35K,40K | |
Gino 4 LED with Type II, III & IV Distributions | ||||
UGI-31641 | 10 | 982 lm | 27K,30K,35K,40K | • |
Photometric and Downloads
Product Information |
Gino photometric (IES / LDT) |
Gino CAD Files (2D / RFA / 3DS) |
IFC - BIM |
Dialux Files .uld |
