Bornholm
Model#: UBOH-600XX Ratings: IP68 IK07
A high powered compact recessed LED underwater projector for lighting small ponds, waterfalls and water jets. The floodlight must be submerged when operating. Stainless steel grade 316 body, stainless steel screws. Cable entry PG.11 cable gland supplied with 7ft of outdoor submersible #18/3 SOOW 600v power cable. Durable high temperature memory retentive silicon gasket and clear tempered vandal resistant glass. Remote 24v constant voltage driver required to be installed by others. Driver output voltage to be determined depending on quantity of luminaires connected in parallel.
Color temperature 2700K, 3000K, 3500K and 4000K, LED CRI >80 and life time 50,000 Hours. A variety of beam spreads are available to suit the application requirements. Maximum depth 5'. suitable for recessed mount. Recessing box in PVC is included. Remote driver is included and required to be installed by others. Remote IP gear box by contractor. This luminaire is constant voltage and needs connecting in parallel. This product is not available in Canada
Spec Sheets and Downloads for Bornholm
Specification Sheets
|

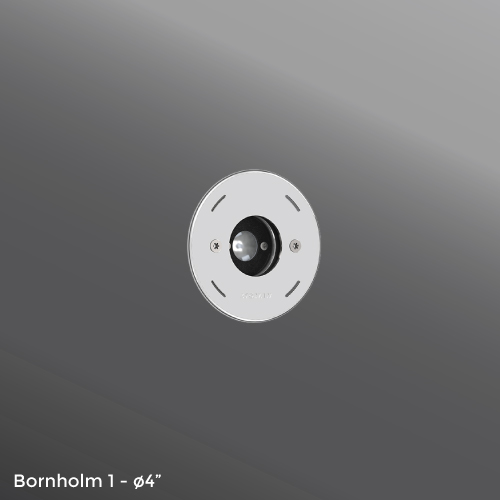

Bornholm 1
|
 |
| Model No. |
Watts
|
Lumens
|
Kelvin
|
Beam
|
Dimmable 1-10V
|
| UBOH-60003 | 4 | 352 lm | 27K,30K,35K,40K | 13°-18°-28°-63˚- 13˚x 42˚ | |
| UBOH-60003-RGBW | 4 | 170 lm | RGBW | 34˚ |
|
Bornholm 2
|
 |
| Model No. |
Watts
|
Lumens
|
Kelvin
|
Beam
|
Dimmable 1-10V
|
| UBOH-60013 | 8 | 984 lm | 27K,30K,35K,40K | 11°-17°-33°-71˚- 11˚x 41˚ | |
| UBOH-60013-RGBW | 10 | 520 lm | RGBW | 13°-19°-32°-71˚-13˚x 42˚ |
|
Bornholm 3
|
 |
| Model No. |
Watts
|
Lumens
|
Kelvin
|
Beam
|
Dimmable 1-10V
|
| UBOH-60023 | 21 | 2319 lm | 27K,30K,35K,40K | 11°-17°-33°-71˚- 11˚x 41˚ | |
| UBOH-60023-RGBW | 15 | 1133 lm | RGBW | 11°-17°-32°-71˚- 14˚x 43˚ |
|
Bornholm 4
|
 |
| Model No. |
Watts
|
Lumens
|
Kelvin
|
Beam
|
Dimmable 1-10V
|
| UBOH-60033 | 32 | 4038 lm | 27K,30K,35K,40K | 10°-16°-32°-71˚-11˚x 43˚ | |
| UBOH-60033-RGBW | 20 | 1600 lm | RGBW | 8°-17°-26°-65˚-11˚x 43˚ |
