Bamboo Bollard
Model#: UBA-106XX Ratings: IP65 CE IK08 ETL
A decorative range of cylindrical and square shape bollards with a symmetrical light distribution available in two standard heights. Developed to complement the Bamboo wall light. Designed for lighting of entrances, footpaths, squares, gardens and residential areas. These luminaires produce pleasant soft light with a high level of visual comfort. The Bamboo is provided with options of clear or opal lenses to suit customer requirements and comes standard with a unique waterproof internal driver housing compartment that is situated at the top of the pole to stop water and dust from entering the electrical components. This fixture is supplied completely wired with power cord and waterproof gland from the driver enclosure to the base of the bollard ensuring quick trouble-free installation. Custom bollard heights are available, please specify. Color temperature 2700K, 3000K and 4000K.
Other Fixtures in the Bamboo Design Family:
Spec Sheets and Downloads for Bamboo Bollard
Specification Sheets

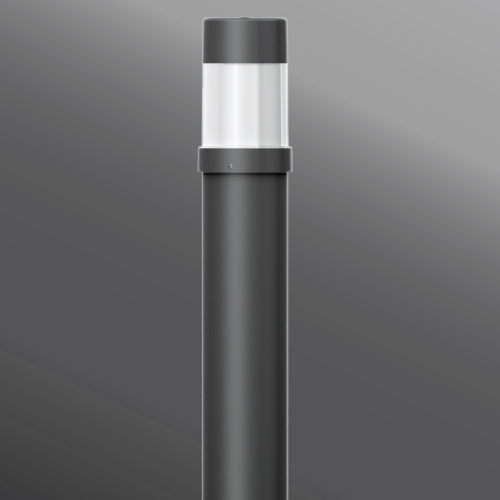

Bamboo Cylindrical Bollard COB
|
Model No. |
Watts
|
Lumens
|
Kelvin
|
(H) Height
|
Dimmable 1-10v
|
UBA-10613 |
15
|
480lm | 360lm
|
27K,30K,35K,40K
|
26”
|
•
|
UBA-10623 |
15
|
480lm | 360lm
|
27K,30K,35K,40K
|
42”
|
•
|

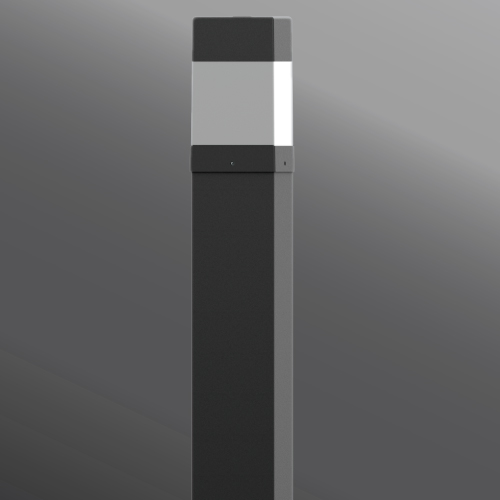

Bamboo Square Bollard COB
|
Model No. |
Watts
|
Lumens
|
Kelvin
|
(H) Height
|
Dimmable 1-10v
|
UBA-10633 |
15
|
463lm | 311lm
|
27K,30K,35K,40K
|
26”
|
•
|
UBA-10643 |
15
|
463lm | 311lm
|
27K,30K,35K,40K
|
42"
|
• |
Photometric and Downloads
Product Information |
Bamboo photometric IES |
Bamboo CAD Files (2D / RFA / 3DS) |
IFC - BIM |
Dialux Files .uld |
