Forrey Pendant
Model#: UFOR-950XX Ratings: IP65 IK08
A decorative range of pendants designed to complement the Forrey wall light, bollard and post top with options of having no lens or a high impact UV stabilized opal lens. This decorative lantern provides a symmetrical light distribution using high output COB LED. Designed for lighting entrances, retail outlets, malls and showrooms. This product is available with a swivel mount attachment up to 90˚ pivot angle for seismic requirements, as well as sloped ceiling applications, please specify in options. The ceiling mount driver enclosure housing covers a 3” octagonal recessed j-box.Contractor to use proper securing devices for the ceiling material on the job to ensure a sturdy and safe installation. This product is provided with an integral driver. The pendant is provided with a 1/2” painted galvanized steel pendent rod with various ceiling mount attachments to suit customer requirements, please see options.
Other Fixtures in the Forrey Design Family:
Spec Sheets and Downloads for Forrey Pendant
Specification Sheets
Forrey 25 Pendant No Lens
|
Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
UFOR-95001 |
48
|
4813
|
27K,30K,35K,40K
|
•
|
Forrey 25 Pendant Opal Lens
|
Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
UFOR-95011 |
50
|
4197
|
27K,30K,35K,40K
|
•
|
Forrey 26 Pendant No Lens
|
Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
UFOR-95002 |
48
|
3749
|
27K,30K,35K,40K
|
•
|
Forrey 26 Pendant Opal Lens
|
Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
UFOR-95012 |
50
|
3275
|
27K,30K,35K,40K
|
•
|

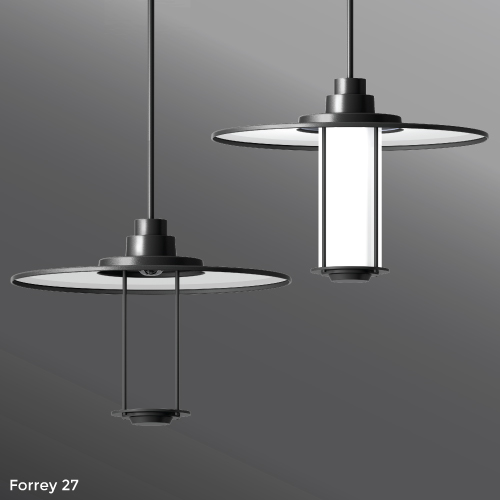

Forrey 27 Pendant No Lens
|
Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
UFOR-95041 |
70
|
7522
|
27K,30K,35K,40K
|
•
|
Forrey 27 Pendant Opal Lens
|
Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
UFOR-95051 |
60
|
4553
|
27K,30K,35K,40K
|
•
|
Forrey 28 Pendant No Lens
|
Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
UFOR-95042 |
70
|
6603
|
27K,30K,35K,40K
|
•
|
Forrey 28 Pendant Opal Lens
|
Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
UFOR-95052 |
60
|
4053
|
27K,30K,35K,40K
|
•
|
Forrey 29 Pendant No Lens
|
Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
UFOR-95021 |
48
|
4780
|
27K,30K,35K,40K
|
•
|
Forrey 29 Pendant Opal Lens
|
Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
UFOR-95031 |
50
|
4556
|
27K,30K,35K,40K
|
•
|
Forrey 30 Pendant No Lens
|
Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
UFOR-95022 |
48
|
3711
|
27K,30K,35K,40K
|
•
|
Forrey 30 Pendant Opal Lens
|
Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
UFOR-95032 |
50
|
3526
|
27K,30K,35K,40K
|
•
|
Forrey 31 Pendant No Lens
|
Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
UFOR-95061 |
70
|
8415
|
27K,30K,35K,40K
|
•
|
Forrey 31 Pendant Opal Lens
|
Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
UFOR-95071 |
60
|
4553
|
27K,30K,35K,40K
|
•
|
Forrey 32 Pendant No Lens
|
Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
UFOR-95062 |
70
|
6603
|
27K,30K,35K,40K
|
•
|
Forrey 32 Pendant Opal Lens
|
Model No. |
Watts
|
Lumens
|
Kelvin
|
Dimmable 1-10V
|
UFOR-95072 |
60
|
4053
|
27K,30K,35K,40K
|
•
|
Photometric and Downloads
Product Information |
Forrey Photometric IES |
Forrey CAD Files (2D / RFA / 3DS) |
IFC - BIM |
Dialux Files .uld |
Installation Instructions
Product Installation |
Forrey Installation |
