Tango cylindrical and square surface exterior downlight dia. 6.3
Model#: UTA-80XXX, UTA-804XX, UTA-800XX, UTA-801XX Ratings: IP65 F CE IK08 ETL IDA
Suitable for wet locations A range of cylindrical surface mounted exterior downlight luminaires. The luminaires are suitable for indoor and outdoor applications for use in residential, shopping and public areas as surface ceiling downlights. The luminaires have features such as long life, limited maintenance and constant lifetime performance. The luminaire is rated as class I with the high power LED integral driver. Low copper content die-cast aluminium housing with a chemical chromatized protection before powder coating, ensuring high corrosion resistance. Stainless steel screws. Power is provided to the luminaire through water tight single cable gland. Durable silicone rubber gasket and clear toughened glass.
Other Fixtures in the Tango Design Family:
Spec Sheets and Downloads for Tango cylindrical and square surface exterior downlight dia. 6.3
Specification Sheets
|

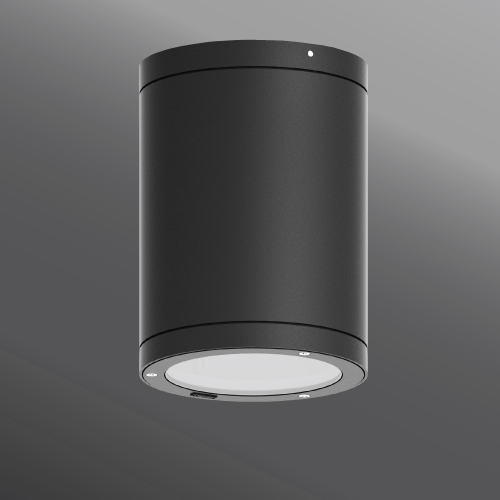

Tango 33 Cylindrical Surface Downlight with Type II, III & IV Distribution
|
|
| Model No. | Watts | Lumens | Kelvin | Dimmable 1-10V |
| UTA-80551 | 37 | 2777 lm | 27K,30K,35K,40K, • | • |
• = Amber LED
|
Tango 33 Cylindrical Surface Downlight with Asymmetrical Light Distribution
|
|
| Model No. | Watts | Lumens | Kelvin | Dimmable 1-10V |
| UTA-80552 | 29 | 2566 lm | 27K,30K,35K,40K | - |
| UTA-80553 | 42 | 3418 lm | 27K,30K,35K,40K | - |
|

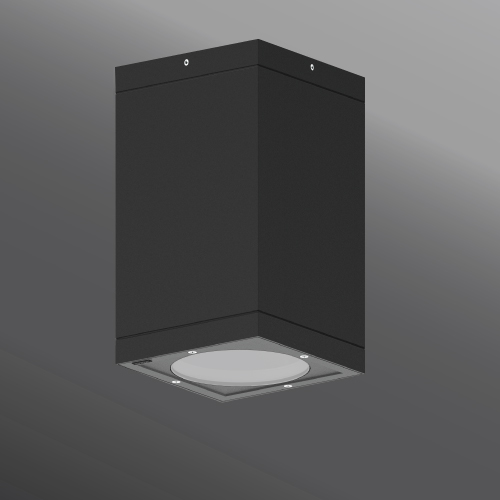

Tango 34 Square Surface Downlight HP LED With With Type II, III & IV Distribution
|
|
| Model No. | Watts | Lumens | Kelvin | Dimmable 1-10V |
| UTA-80561 | 37 | 2777 lm | 27K,30K,35K,40K, • | • |
• = Amber LED
|
Tango 34 Square Surface Downlight with Asymmetrical Light Distribution
|
|
| Model No. | Watts | Lumens | Kelvin | Dimmable 1-10V |
| UTA-80562 | 29 | 2566 lm | 27K,30K,35K,40K | - |
| UTA-80563 | 42 | 3418 lm | 27K,30K,35K,40K | - |
|
Tango 5 Cylindrical Surface Downlight Dia 6.3” HP LED
|
|
| Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
| UTA-80401 | 30 | 2072 lm | 27K,30K,40K | 14°-24°-40° | • |
|
Tango 6 Cylindrical Surface Downlight Dia. 7.32” HP LED
|
|
| Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
| UTA-80421 | 40 | 2750 lm | 27K,30K,40K | 14°-24°-40° | • |
|
Tango 15 square surface downlight 6.3” HP LED
|
|
| Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
| UTA-80411 | 30 | 1826 lm | 27K,30K,40K | 14°-24°-40° | • |
|
Tango 16 Square Surface Downlight 7.32” HP LED
|
|
| Model No. | Watts | Lumens | Kelvin | Beam | Dimmable 1-10V |
| UTA-80431 | 40 | 2750 lm | 27K,30K,40K | 14°-24°-40° | • |
Photometric and Downloads
| Product Information |
| Tango photometric IES |
| Tango CAD Files (2D / RFA / 3DS) |
| IFC - BIM |
| Dialux Files .uld |
